1. 0445020027 Common Rail Pump Packing List and Package Size
- Common Rail Pump Spare Parts List
|
No.
|
1 |
2 |
3 |
|
|
 |
 |
 |
|
Name
|

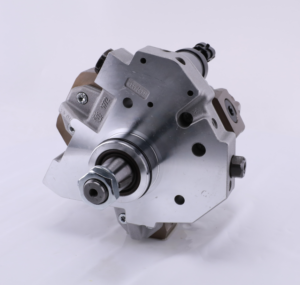

Common Rail Pump Assembly |
Blue Anti-rust Bag |
Inner lining
|
|
Description
|
Common Rail Pump Assembly Number: 0445010408
|
Prevent Common Rail Pump From Rusting |
Prevent Common Rail Pump From Being Damaged By External Force
|
|
No.
|
4 |
5 |
6
|
|
|
 |
 |
|
|
Name
|
Common Rail Pump Packaging Box |
White label |
Common Rail Pump Protective Cover
|
| Description |
Place the Common Rail Pump and Pump Accessories
|
Product Model |
Protect the Common Rail Pump Hole From Contamination and Blockage |
- Minors are prohibited from using the common rail pumpassembly, O-rings, fuel inlet protective cover, common rail pump housing cover, fuel return cover, VCI anti-rust bag, and bubble bag to avoid personal injury.
- O-rings and repair kits are disposable installation accessories and need to be replaced for reinstallation.
- Fuelinlet protective cover, common rail pump housing cover, and fuel return cover are recyclable accessories and can be recycled.
- VCI anti-rust bag and bubble bag are non-degradable materials. Please dispose of them properly after use.
- The common rail pumpand installation parts guide tube should be treated with appropriate sealing fuel during installation.
| No. |
Name |
Common Rail Pump Packing Size（cm） |
| 1 |
Common Rail Pump Box |
32*23*28 |
2. 0445020027 Common Rail Pump Installation
- 0445020027Common Rail Pump Installation Precautions:
- he replacement of the common rail pumpmust strictly follow the electrical system, the approved pressure of the low-pressure fuel intake system, the approved pressure of the high-pressure fuel circuit system, and fuel system replacement consumables requirements (including the low-pressure fuel circuit system filter and the high-pressure fuel circuit) specified in the vehicle engine maintenance manual.
- Replacement of wearing parts of the fuel system, cleaning requirements for the connection between the fuel system and the common rail pump, the fitting clearance of the common rail pumpconnection, the installation angle and tightening torque of the common rail pump, the fitting clearance of the intake system, and the fitting clearance of the exhaust system to ensure the service life of the engine and the normal operation of the common rail pump.
- When installing the common rail pumpon the engine, it is necessary to clean the engine cylinder block, cylinder head and other parts connected to the common rail pump and ensure that they are clean and free of dust, carbon deposits, water, rust spots, etc.
- Failure to replace the new sealing ring gasket may lead to: common rail pumpdeformation, fuel leakage, air leakage, serious damage to the common rail pump, causing the common rail pump to break and cause engine damage.
- When installing the common rail pumpon the engine, please carefully check that the parts related to the installation of the common rail pump, such as the common rail pump pressure plate, screws, push rods and other accessories are not deformed, and strictly follow the operating procedures in the engine maintenance manual for installation.
- It is forbidden to expose the common rail pumpfor a long time in an environment with severe dust pollution and corrosion to iron products.
- It is forbidden to expose the common rail pumpfor a long time in a strong magnetic field environment.
